Automotive Right Side Panel Stamping Die

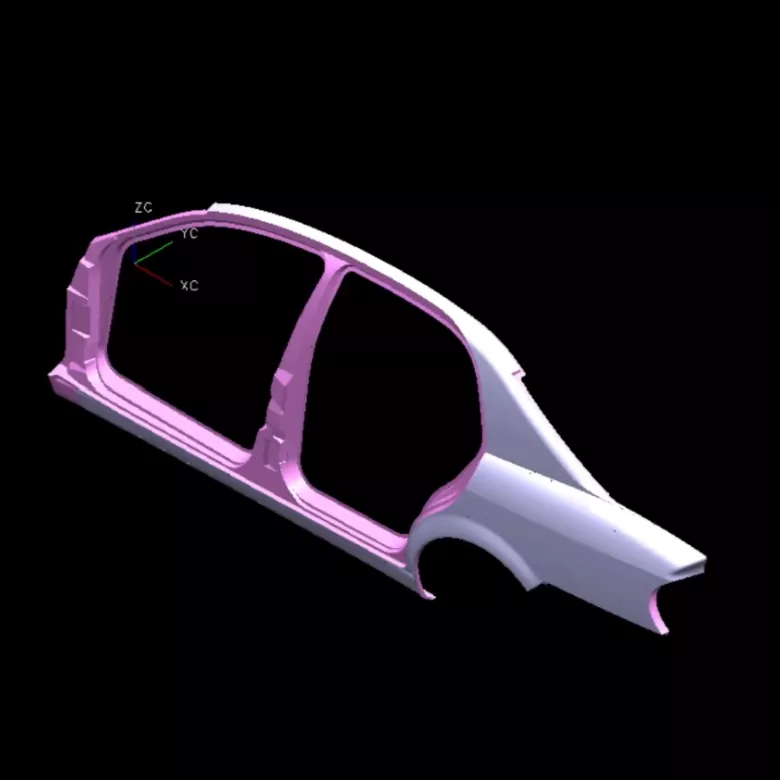

SIKAIDA's Automotive Right Side Panel Stamping Die is a large, high-precision die system composed of multiple components, capable of meeting the forming needs of the right side panel (outer panel, inner panel, reinforcing ribs, etc.). As a professional supplier, SIKAIDA strictly controls quality to ensure the stable production of high-quality side panel parts, supporting efficient production for automakers.

Product Details

1. Large-Scale and Complex Structure

The Automotive Right Side Panel Stamping Die is massive in size (over 1.5 meters long and over 0.8 meters wide) with a complex shape, capable of forming key features such as door windows, rearview mirror mounting positions, and reinforcing ribs.

2. High Precision and High Quality Requirements

Designed for side panel appearance parts, the mold surface is defect-free, with dimensional accuracy within ±0.05mm, a mirror-like surface finish (Ra≤0.4μm), and smooth, burr-free edges.

3. Complex Forming Processes

Integrating advanced processes such as deep drawing, trimming and punching, flanging, reinforcing rib pressing, and multi-station continuous forming, it efficiently completes the forming of complex parts.

4. Precision Guiding and Adjustment System

Equipped with high-precision guide pillars and bushings, adjustable pressure rings, movable cam sliders, and a nitrogen spring/hydraulic system, ensuring stamping accuracy and stability.

5. Advanced Cooling and Lubrication System

Featuring circulating water cooling, automatic lubrication, and compressed air purging systems, it is suitable for high-speed stamping, extending mold life and ensuring stable production.

Product Features and Applications

1. Integral Molding: One-piece molding reduces welding and improves efficiency;

2. High-Efficiency Production: Adaptable to high-speed automation, cycle time 15-20 seconds;

3. High Material Utilization: Optimized layout, utilization rate ≥85%;

4. Good Consistency: Stamped parts have stable quality and strong interchangeability;

5. Strong Adaptability: Replaceable components can adapt to different vehicle models, reducing costs.

Manufacturing Process Introduction

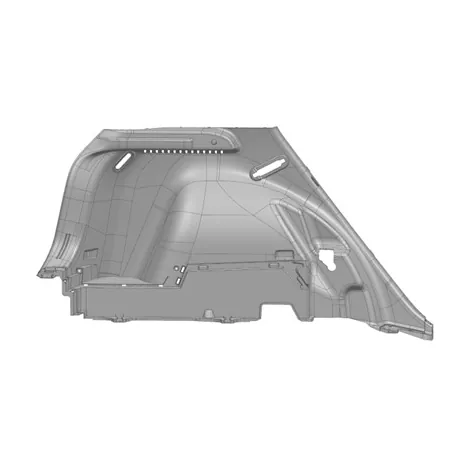

1. Product Analysis and Process Design: The Automotive Right Side Panel Stamping Die uses CAE software to analyze stamping formability, optimize the process, and determine the optimal stamping solution.

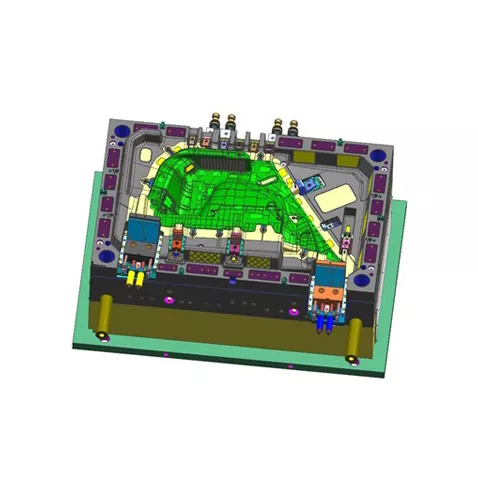

2. Mold Design: Full 3D design using UG and CATIA to improve core mechanisms such as guiding and cooling.

3. Material Selection: The mold base uses 45 steel, and the working parts use tool steels such as Cr12MoV, with high-wear areas reinforced.

4. Precision Machining Process: Rough machining, finish machining (CNC, wire cutting), and surface treatment (quenching, polishing, nitriding) ensure mold precision and wear resistance.

5. Assembly and Debugging After precision assembly, the die is tested on the machine, parameters are adjusted, and batch trial production verifies the die's stability.

The SIKAIDA Automotive Right Side Panel Stamping Die is a core piece of equipment in automotive manufacturing. Its development cycle is 8-15 months, and its cost is high, making it a key indicator of a company's strength. Our factory in China has full production capacity and will continue to innovate, providing high-quality die solutions to global customers for mutual benefit.

Frequently Asked Questions

Q1: What materials are typically used for the Automotive Right Side Panel Stamping Die?

A1: The die base commonly uses standard carbon structural steel (such as 45 steel), while the working parts use high-carbon, high-chromium tool steel (such as Cr12MoV, DC53). High-wear areas can use cemented carbide or undergo surface strengthening treatment.

Q2: How long is the production cycle for an automotive right side panel stamping die?

A2: The automotive right side panel stamping die is the culmination of technology, experience, and craftsmanship. Its development cycle is long (usually 8-15 months), and its cost is high (reaching millions to tens of millions of RMB), making it a key indicator of a die company's comprehensive strength. As the automotive industry develops towards new energy, intelligentization, and lightweighting, the technical requirements for its molds will continue to increase.
