Automotive Left Fender Stamping Die

SIKAIDA's Automotive Left Fender Stamping Die is a large, high-precision die used for stamping left fender panels, requiring the forming of complex curved surfaces and edge banding. As a leading automotive stamping die manufacturer in China, SIKAIDA possesses extensive R&D and manufacturing experience, leading product technology, and provides reliable die solutions to global automakers.

Product Details

1. Large and Complex Structure

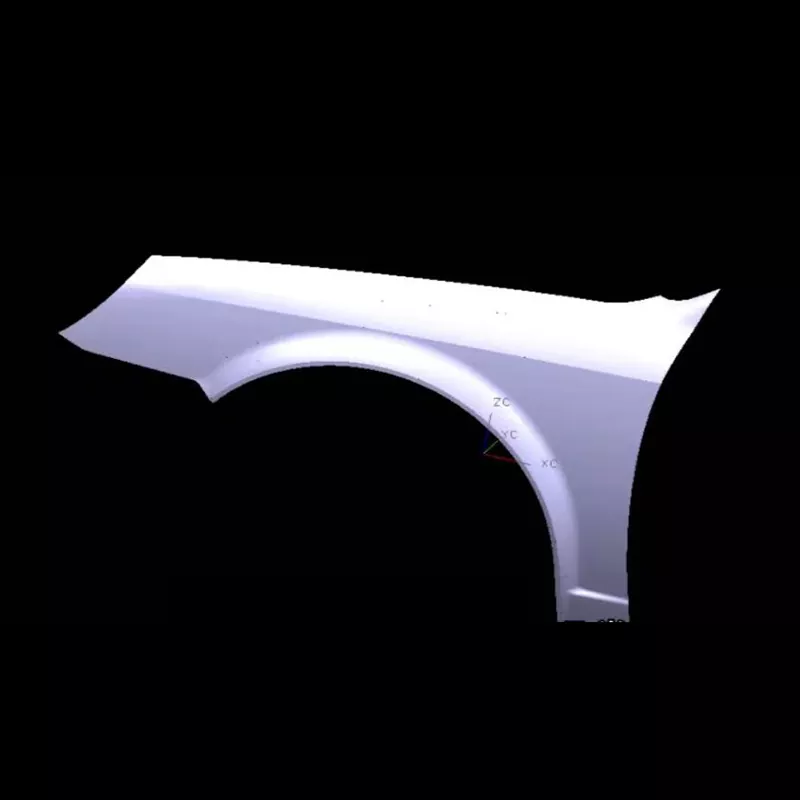

This Automotive Left Fender Stamping Die is large in size (over 800mm long and over 500mm wide), with complex surfaces, requiring the forming of various curved surfaces and edge banding features, demanding extremely high precision. SIKAIDA, with its advanced design and processing technology, can perfectly adapt to the styling needs of various vehicle models.

2. High Precision and High-Gloss Requirements

The left fender is an exposed surface and must be free of surface defects; therefore, the surface roughness of the die must be below Ra0.4. SIKAIDA strictly controls each stage of production to ensure die precision and the appearance quality of the stamped parts.

3. Complex Forming Process

The Automotive Left Fender Stamping Die integrates multiple processes such as drawing, trimming, and punching, and is compatible with single-stage drawing and hydroforming processes. SIKAIDA optimizes the process layout to effectively reduce costs and increase efficiency.

4. Complex Forming System

For the negative angle and undercut structure of the left fender, the die is equipped with complex mechanisms such as sliders and wedges, combined with a reasonable draw bead and venting system to avoid forming defects and improve the yield rate.

5. Precision Guiding and Positioning System

High-precision guiding components ensure accurate alignment of the upper and lower dies, and a sophisticated positioning device ensures accurate sheet metal positioning, improving stamping accuracy and die life.

Product Features and Applications

This Automotive Left Fender Stamping Die is suitable for the production of various automotive left fenders, producing aerodynamically streamlined shapes. It is compatible with various materials such as steel and aluminum alloys. As a professional supplier, SIKAIDA offers customized services to meet the needs of different vehicle models.

Manufacturing Process Introduction

1. Product Analysis and CAE Simulation

CAE simulation is performed using software such as AutoForm to predict and resolve defects such as cracking and wrinkling, ensuring the quality of mold design and manufacturing.

2. Mold Design

Full 3D design is performed using UG and CATIA software to refine component details, ensuring a reasonable mold structure and reliable operation.

3. Material Selection

The Automotive Left Fender Stamping Die base is made of high-quality steels such as 45 steel and 42CrMo, while the working parts use special steels such as Cr12MoV, ensuring high hardness and high wear resistance, suitable for long-term high-intensity stamping.

4. Precision Machining

Specialized machining processes including roughing, high-speed CNC finishing, wire cutting, and fine polishing, combined with quenching and tempering (hardness HRC48-52), meet precision and surface roughness requirements.

5. Assembly and Debugging (T0 Trial Molding)

After assembly, the mold is tested on the machine. Process parameters are repeatedly adjusted, and the mold is optimized to ensure the stamped parts are qualified and the mold can be directly mass-produced.

Development Trends:

1. Ultra-Lightweight Integrated Molding

The left fender is developing towards larger sizes and integrated designs. SIKAIDA uses advanced processes such as hot forming to develop molds suitable for high-strength and lightweight requirements.

2. Intelligentization and Digitalization

Sensors are embedded in the Automotive Left Fender Stamping Die for real-time monitoring. Combined with digital twin technology, virtual debugging is achieved, shortening the development cycle and improving the success rate of trial molding.

3. Multi-Material and Composite Molding

Adapting to new materials such as aluminum alloys and carbon fiber, corresponding composite molding processes and molds are developed to meet diverse market demands.

4. Additive Manufacturing Applications

Utilizing 3D printing technology to manufacture complex mold components enhances mold performance, shortens manufacturing cycles, and highlights the advantages of manufacturing complex structures.

SIKAIDA's Automotive Left Fender Stamping Die is a typical example of an automotive body panel mold. Its development cycle of 8-15 months and high cost highlight the company's strength. As a professional manufacturer and supplier in China, SIKAIDA will keep up with industry trends, continuously optimize its products, and provide high-quality mold solutions to global customers.

Frequently Asked Questions

Q1: What materials are typically used in automotive left fender stamping dies?

A1: The mold base commonly uses high-quality carbon structural steel (such as 45 steel) or alloy structural steel (such as 42CrMo). The working parts (profiles, cutting edges) use high-carbon, high-chromium tool steel (such as Cr12MoV, SKD11) or powder metallurgy steel (such as CPM-D2) to ensure high hardness, high wear resistance, and good toughness.

Q2: How long is the manufacturing cycle for automotive left fender stamping dies?

A2: The development cycle of stamping dies for the left fender of automobiles is long (usually 8-15 months) and the cost is high (reaching millions to tens of millions of RMB), making it a key benchmark for measuring the comprehensive strength of die-making companies. As automobiles develop towards intelligence, electrification, and lightweighting, the technical requirements for their dies will continue to increase.
