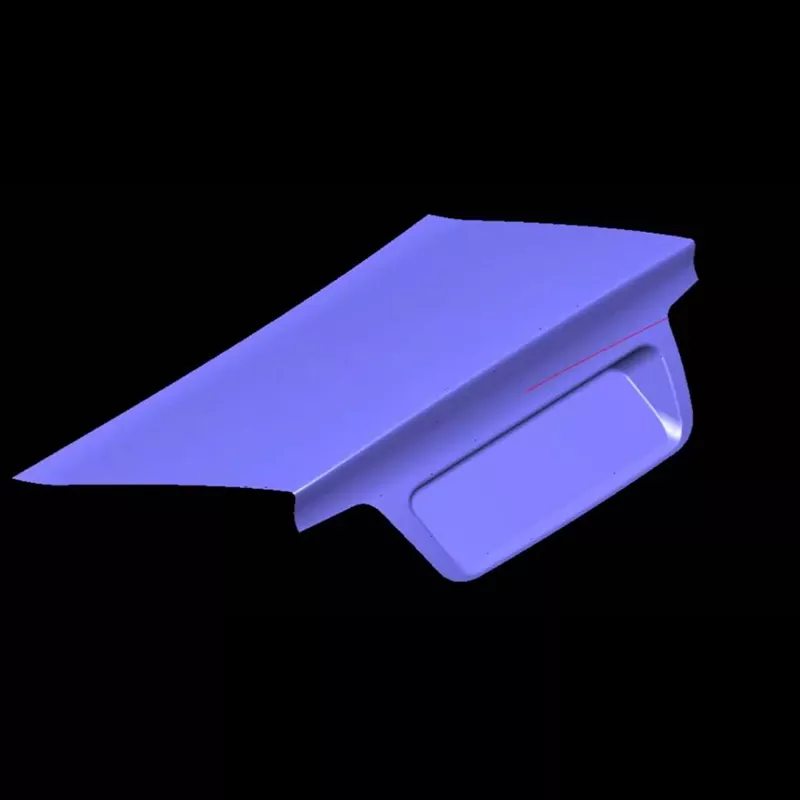

Automotive Trunk Lid Outer Panel Stamping Die

The SIKAIDA Automotive Trunk Lid Outer Panel Stamping Die is a large, high-precision piece of equipment specifically designed for producing metal trunk lid outer panel components. Utilizing materials such as cold-rolled steel and aluminum alloys, it forms complex curved surfaces through advanced stamping processes, integrating multidisciplinary technologies and showcasing SIKAIDA's professional manufacturing capabilities.

Core Product Features:

1. Large Curved Surface Forming: Suitable for complex double-curved trunk lid outer panels exceeding 800mm × 600mm in size, formed in a single stamping process, with precise curvature control and material flow allowance to avoid defects such as cracks and wrinkles.

2. High Precision and High Gloss Requirements: Surfaces achieve mirror-like polishing (Ra≤0.4μm), free of scratches and dents; strict control of stamping parameters ensures flawless surface finish, meeting automotive-grade appearance standards.

3. Adaptability to Complex Geometric Structures: Our Automotive Trunk Lid Outer Panel Stamping Die adapts to various geometric features of trunk outer panels, with optimized process supplementary surfaces, draw ribs, and venting systems to ensure uniform forming across all parts.

4. Precision Guiding and Balancing System: Equipped with a high-precision guiding and balancing device, the coaxiality of the upper and lower dies is ≤0.02mm, ensuring uniform stamping clearance and preventing burrs and localized excessive thinness in the parts.

5. Advanced Lubrication and Demolding System: A centralized lubrication system reduces friction and wear; pneumatic and hydraulic demolding mechanisms ensure smooth demolding without deformation or scratches.

Product Application Scenarios

Suitable for manufacturing trunk lids for passenger vehicles such as sedans, SUVs, and MPVs. Divided into three categories based on vehicle type:

1. Economy: Focuses on cost, simplified structure, and suitability for mass production.

2. Mid-to-High-End: Pursues an exquisite appearance, equipped with a high-precision forming and polishing system.

3. New Energy: Lightweight design, suitable for processing new materials such as aluminum alloys.

Manufacturing Process

1. Product Analysis and Process Simulation

Automotive Trunk Lid Outer Panel Stamping Die utilizes professional software simulation analysis to predict forming defects, optimize processes and mold structures, and ensure design rationality.

2. Mold Design

The entire design process is completed using 3D design software, taking into account processing, assembly, and maintenance, and outputting complete drawings and a BOM list.

3. Material Selection

- Mold Base: 45# steel or 42CrMo, heat-treated to ensure strength and toughness.

- Working Parts: Cr12MoV, SKD11, and other tool steels, with a hardness of HRC48-52 after heat treatment, offering excellent wear resistance.

- Guide pillars and bushings: Bearing steel or high-carbon chromium steel, ensuring high hardness and high wear resistance.

4. Precision Machining

Rough machining allows for finishing machining allowance; finishing machining ensures accuracy and surface finish. Surfaces are polished and hard chrome plated to ensure a mirror finish and wear resistance.

5. Assembly and Debugging (T0 Trial Molding)

Assemble standard parts and test sealing. Perform trial stamping to verify accuracy and stability. Optimize parameters and adjust the mold to ensure the finished part meets standards.

Development Trends

Adapting to lightweight materials, promoting intelligent and digital manufacturing, achieving precision integrated molding, applying additive manufacturing technology, and practicing green manufacturing concepts.

Frequently Asked Questions

Q1: What materials are typically used in the Automotive Trunk Lid Outer Panel Stamping Die?

A1: The mold base commonly uses carbon structural steel or alloy structural steel such as 45# steel and 42CrMo. The working surface uses high-carbon, high-chromium tool steel such as Cr12MoV and SKD11. Guide pillars and bushings are made of bearing steel or high-carbon chromium steel. All materials must undergo appropriate heat treatment to achieve the required hardness, strength, and wear resistance.

Q2: How long is the production cycle for the Automotive Trunk Lid Outer Panel Stamping Die?

A2: The development cycle for stamping dies for automotive trunk outer panels is typically 8-15 months, depending on product complexity, technical requirements, and customer needs. The design phase requires 2-3 months, the manufacturing phase requires 4-6 months, and the assembly, debugging, and trial molding phase requires 2-3 months. The entire process requires multiple rounds of iterative optimization to meet mass production requirements.

Q3: How to ensure the appearance quality of the trunk outer panel?

A3: Ensuring appearance quality requires control at multiple stages: First, the die surface must meet mirror-level polishing standards (Ra≤0.4μm); second, lubrication, blank holder force, and stamping force must be strictly controlled during the stamping process; third, appropriate material selection is necessary to avoid surface defects; and fourth, a reasonable demolding method is required to avoid scratches. In addition, surface treatments such as hard chrome plating and painting are necessary to improve appearance quality and corrosion resistance.
