Automotive Right Front Door Outer Panel Stamping Die

The SIKAIDA Automotive Right Front Door Outer Panel Stamping Die is a core customized equipment for stamping right front door outer panels. As a professional supplier, SIKAIDA adheres to high standards, stamping metal materials into high-precision, high-surface-quality right front door outer panels. This is crucial for ensuring product quality and reflects its comprehensive strength as a leading mold factory in China.

Product Details

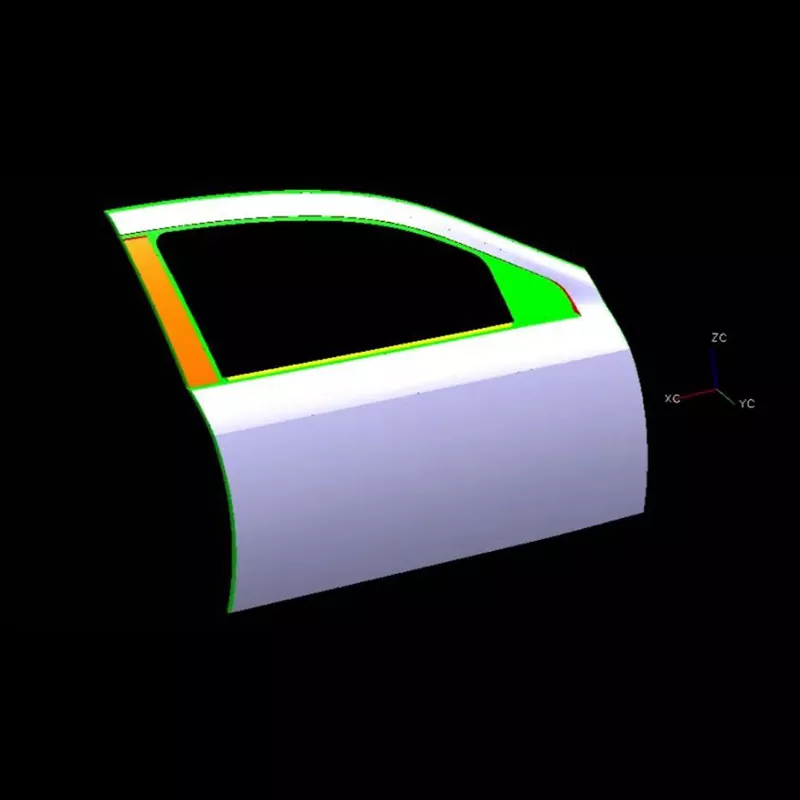

1. Large Curved Surface Forming

The right front door outer panel exceeds 1.5 meters in size, with a complex curved surface, requiring one-time forming of key features. SIKAIDA employs five-axis CNC machining and manual finishing to strictly control mold precision and surface quality, relying on advanced factory equipment to ensure molding results.

2. High Precision and High Gloss Requirements

As an exterior component, the door outer panel requires a smooth, defect-free finish. SIKAIDA Automotive Right Front Door Outer Panel Stamping Die has a working surface roughness of Ra0.4μm or higher. Through special polishing and optimized gap and pressure surface design, it ensures uniform stress on the sheet material and a defect-free surface.

3. Complex Process Integration

Adaptable to advanced processes such as thermoforming and laser welding, SIKAIDA molds integrate various auxiliary devices, allowing for the configuration of complex molding structures, improving efficiency and quality, and showcasing professional technical strength.

4. Powerful Unloading and Guiding System

For the complex structure of the door outer panel, the mold is equipped with a high-precision guiding and unloading system, with precisely configured spring components to ensure smooth demolding of the sheet material without deformation, improving production efficiency and yield.

5. Precision Control and Monitoring System

High-end molds are equipped with a complete sensing system for real-time monitoring of the stamping process; some molds integrate automatic lubrication and mold adjustment functions, achieving intelligent production and improving stability.

Product Features and Applications

This Automotive Right Front Door Outer Panel Stamping Die is used in the manufacturing of doors for various passenger cars and commercial vehicles. SIKAIDA, keeping pace with the lightweight trend, expands its compatibility with high-strength steel and aluminum alloy materials. As a professional supplier in China, it can provide customized solutions.

Manufacturing Process Introduction

1. Product Design and CAE Analysis The Automotive Right Front Door Outer Panel Stamping Die utilizes professional software such as AutoForm for forming analysis and process optimization, predicting defects and laying the foundation for mold manufacturing.

2. Mold Structure Design Full 3D design is performed using UG and CATIA software, comprehensively considering all mold systems, balancing accuracy and maintainability, and reducing design errors.

3. Material Selection High-quality materials such as 45# steel and Cr12MoV are selected to ensure high strength and high wear resistance of the mold, suitable for long-term high-intensity production, and solidifying the foundation for quality.

4. Precision Machining: Roughing, finishing (high-speed CNC, etc.), mirror polishing, and hard chrome plating are performed to ensure mold life and stamping quality.

5. Assembly and Debugging (T0 Trial Molding): After precision assembly, the mold is tested on the machine to adjust process parameters, inspect the first piece, optimize the mold and process, and ensure stable production of qualified products.

Development Trends:

1. Ultra-Lightweight and Integrated Molding

Following the lightweight trend, molds adapted to new materials are developed, and integrated molding technology is adopted to reduce the number of parts and improve efficiency and stability.

2. Intelligent and Digital Production

Built-in sensors in the mold, combined with digital twin technology, enable real-time monitoring and virtual debugging, shortening the R&D cycle and promoting intelligent upgrades.

4. Multi-Materials and Composite Processes

Adapting to multi-material car bodies, strengthening the application of composite processes in the mold, and improving the processing adaptability of various materials such as steel and aluminum.

4. Additive Manufacturing and Remanufacturing

Automotive Right Front Door Outer Panel Stamping Die utilizes metal 3D printing to improve manufacturing efficiency and extends mold life through technologies such as laser remanufacturing, embodying the concept of green development.

Frequently Asked Questions

Q1: What materials are typically used in Automotive Right Front Door Outer Panel Stamping Die?

A1: The mold base commonly uses high-quality carbon structural steel (such as 45#) and alloy structural steel (such as 42CrMo). The working surfaces use high-carbon, high-chromium tool steel (such as Cr12MoV, SKD11) or powder metallurgy steel (such as CPM-VANADIS 6) to ensure high strength, high wear resistance, and high toughness. Some high-end molds also use cemented carbide or ceramic materials.

Q2: How long is the production cycle for the stamping die for the automotive right front door outer panel?

A2: The manufacturing cycle for Automotive Right Front Door Outer Panel Stamping Die is typically 8-15 months, depending on the complexity of the product, technical requirements, and the manufacturing company's capabilities. Its development involves multiple stages, including design, analysis, processing, assembly, and debugging, and is the culmination of technology, experience, and time.

Q3: How to ensure the service life of the stamping die for the right front door outer panel?

A3: The key to ensuring the service life of the die includes: ① Selecting high-quality die materials and advanced heat treatment processes; ② Precision machining and strict quality control; ③ A well-designed lubrication and cooling system; ④ Standardized operation, maintenance, and regular upkeep; ⑤ Timely wear repair and remanufacturing. Through these comprehensive measures, the die life can reach 500,000 to 1,000,000 cycles or more.
