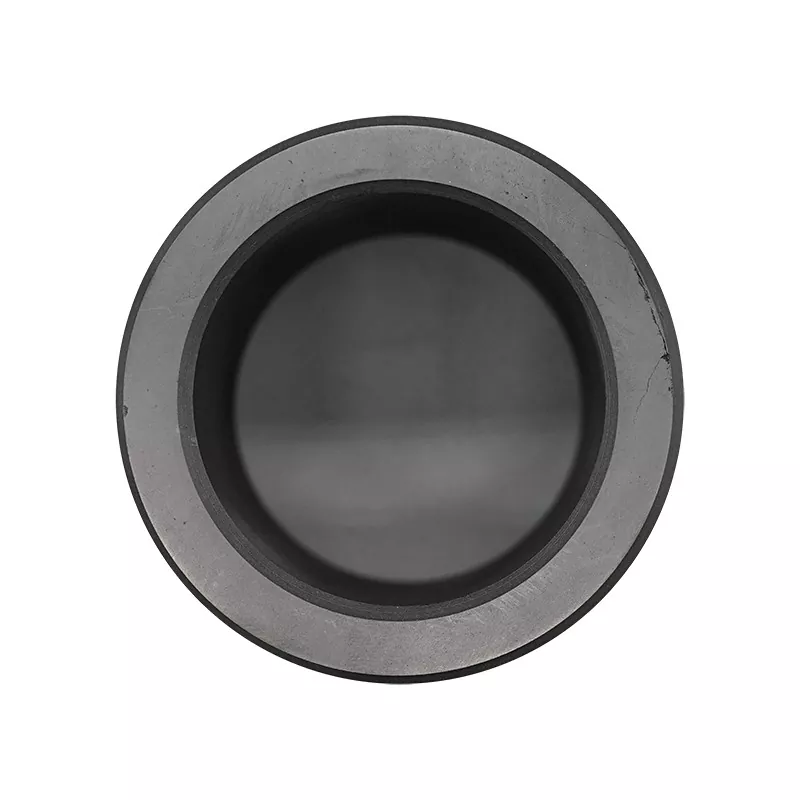

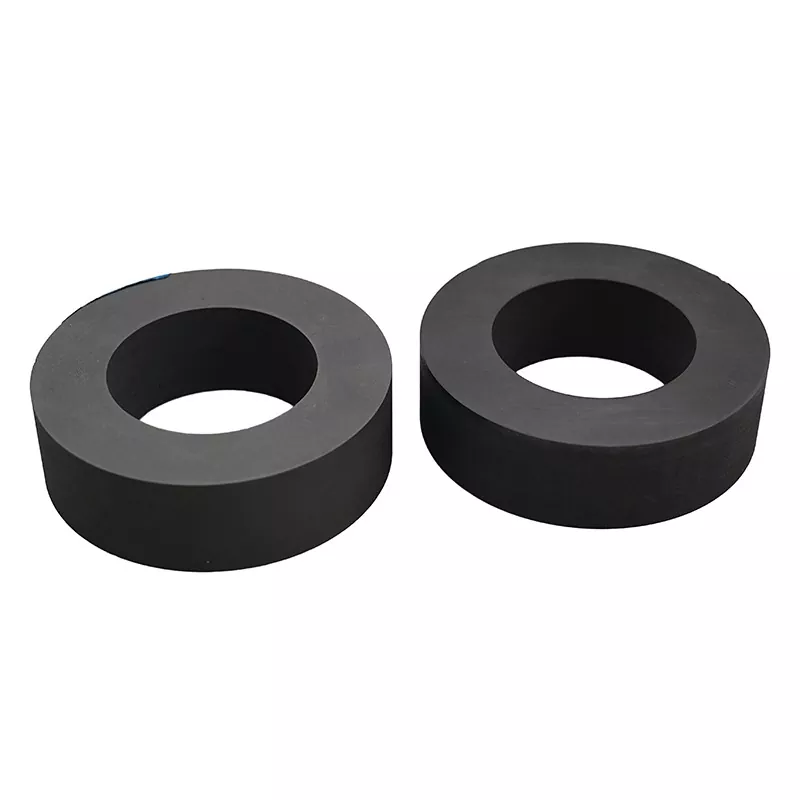

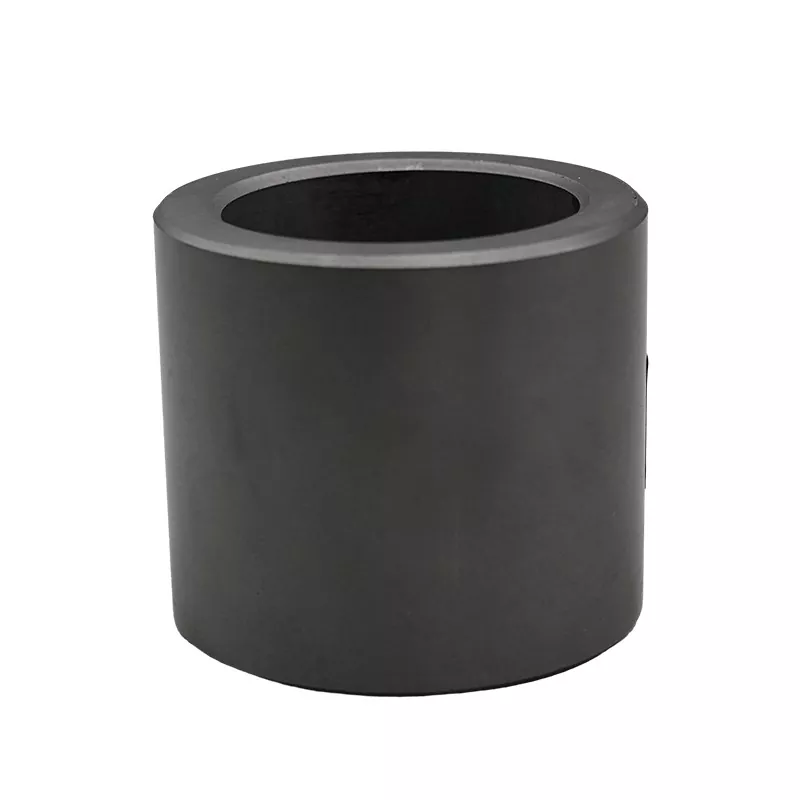

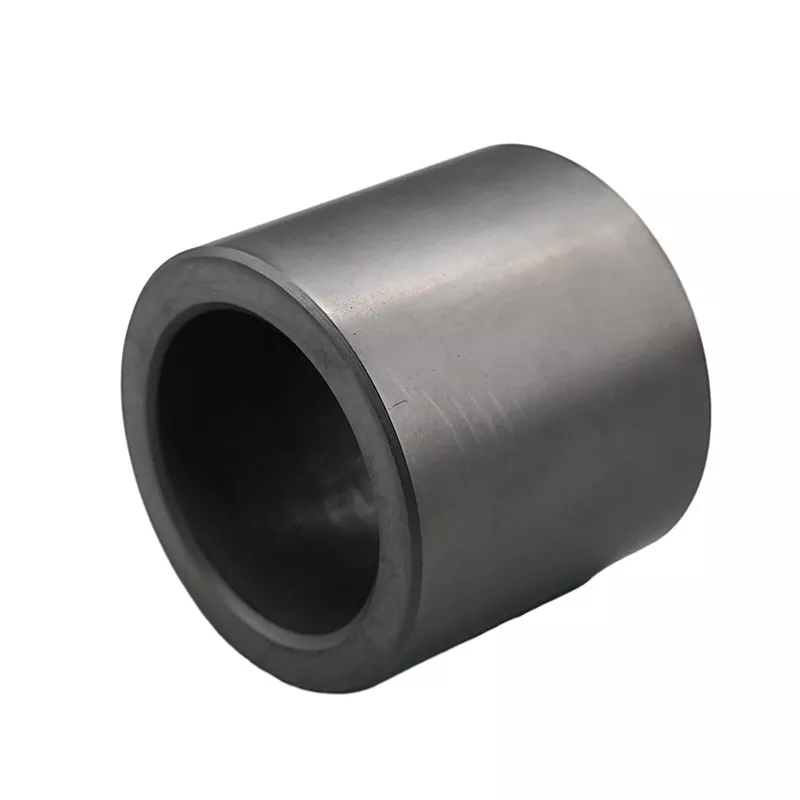

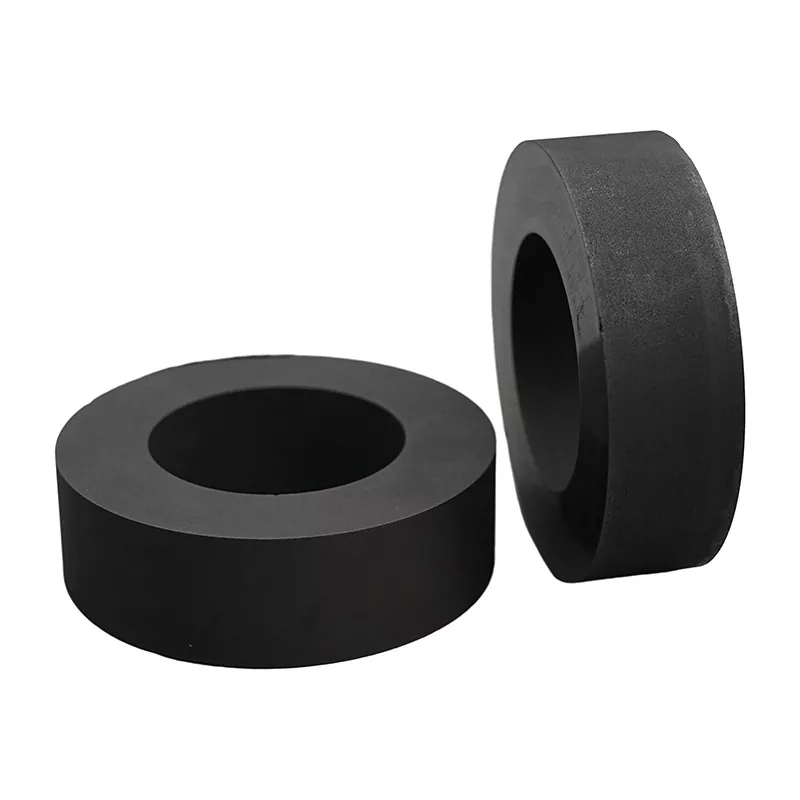

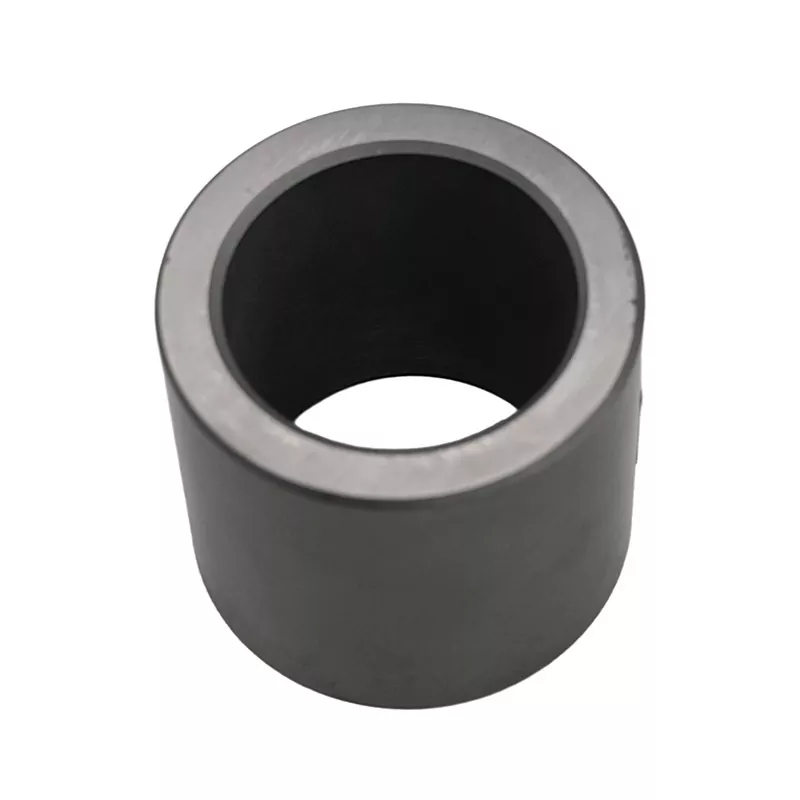

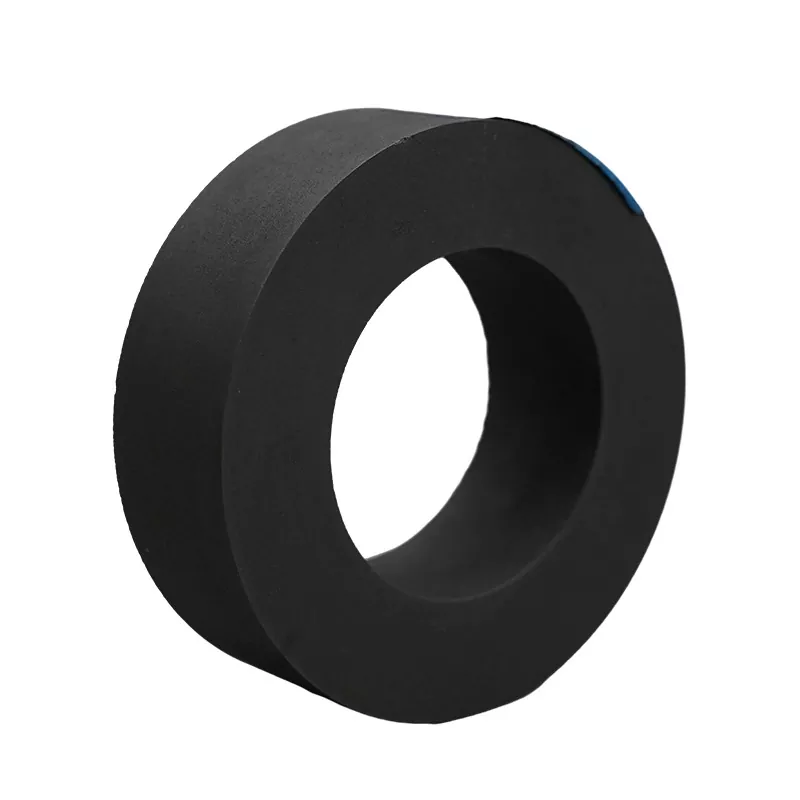

Impregnated Graphite Rings

SIKAIDA Impregnated Graphite Rings are a core sealing product independently developed and manufactured by the company. High-quality graphite matrix is impregnated under vacuum with a liquid impregnating agent (phenolic resin, epoxy resin, furan resin, or molten metals such as antimony or lead), allowing the impregnating agent to fully fill the open pores of the graphite. This process optimizes the physical and mechanical properties of graphite while retaining its inherent advantages, making it an ideal sealing material for harsh working conditions in industries such as petroleum, chemical, and machinery manufacturing.

As a leading manufacturer in China, SIKAIDA, with its strict quality control and mature production capabilities, is committed to providing reliable and customized impregnated graphite rings to various industries, becoming a trusted supplier for global customers. Our factory is equipped with advanced production lines to ensure stable product quality.

Process and Material Selection

1. Impregnated Process

Impregnated Graphite Rings utilize an advanced vacuum impregnation process, involving four main steps: substrate pretreatment, vacuum impregnation, curing, and post-processing. After cleaning and processing the graphite substrate, the impregnating agent is injected into a vacuum environment below 0.1 Pa, and held at that temperature for 30-60 minutes to ensure penetration. Following curing and precision machining, the final performance requirements are met.

2. Material Options

- Resin Impregnation: Phenolic resin (acid-resistant, high cost-effectiveness), epoxy resin (alkali-resistant and wear-resistant), furan resin (excellent overall acid and alkali resistance).

- Metal Impregnation: Antimony-impregnated graphite (commonly used in high-temperature oil pumps), copper-impregnated graphite (improves electrical and thermal conductivity), suitable for special operating conditions.

3. Surface Treatment and Tolerancing

Impregnated Graphite Rings offer a choice of surface treatments including precision machining (roughness Ra ≤ 0.8μm), polishing (mirror finish), and coating; dimensional tolerances are ±0.2μm, end face parallelism ≤0.02mm, suitable for various sealing systems.

Product Specifications

Key Features

1. Excellent Sealing Performance: The impregnation process nearly completely seals the open pores of the graphite, resulting in near-zero permeability, effectively preventing media leakage and ensuring reliable operation of the sealing system.

2. Superior Mechanical Strength: Compared to ordinary graphite, flexural and compressive strength are increased by more than 30%, and wear resistance is improved by 2-3 times, suitable for high-load, high-linear-speed conditions.

3. Strong Corrosion Resistance: Depending on the impregnating agent, it is resistant to strong acids, strong alkalis, salt solutions, and organic solvents, suitable for extreme corrosive environments.

4. Stable Thermal Performance: Maintains stable performance within a temperature range of -200℃ to 450℃, exhibiting a low coefficient of thermal expansion and resistance to thermal shock, making it suitable for high-temperature differential operating conditions.

5. Self-Lubricating and Low-Friction: Retains the inherent self-lubricating properties of graphite, resulting in a low coefficient of friction and minimal wear. It can operate normally under dry friction conditions without lubricant.

Application Areas

Covers multiple fields including mechanical seals (high-speed centrifugal pumps, compressors, reactors, etc.), petrochemicals (crude oil transportation, refining equipment, etc.), power generation (boiler feed pumps, desulfurization units, etc.), aerospace (engine fuel systems, hydraulic systems, etc.), marine engineering (ship shaft seals, offshore platform equipment, etc.), and food and pharmaceuticals (processing equipment, bioreactors, etc.).

SIKAIDA Core Advantages

1. Reliable Sealing: Vacuum impregnation ensures zero penetration, with a leakage rate far lower than industry standards;

2. High Strength and Long Lifespan: Flexural strength ≥30MPa, compressive strength ≥60MPa, lifespan 3-5 times that of ordinary graphite rings under harsh conditions;

3. Wide Adaptability: Corrosion and temperature resistant, customizable impregnation materials, sizes, and performance;

4. Guaranteed Quality: ISO9001:2015 certified, compliant with JB/T 8872 standards, and RoHS and REACH environmental requirements;

5. High Cost-Effectiveness: Cost reduction of over 30% compared to materials such as hard alloys and ceramics.

FAQ

Q1: What are the main advantages of Impregnated Graphite Rings compared to ordinary graphite rings?

A1: Superior sealing performance, over 30% increase in mechanical strength, 2-3 times better wear resistance, stronger corrosion resistance, and surface roughness below Ra 0.8μm.

Q2: How to choose the appropriate impregnating agent type?

A2: Choose according to operating conditions: Phenolic resin is suitable for strong acids (high cost-effectiveness); epoxy resin is suitable for strong alkalis and organic solvents (high strength); furan resin is suitable for complex environments with high acid and alkali resistance; metal impregnation is suitable for conductive, thermally conductive, and highly wear-resistant applications. For inquiries, please consult our technical team.

Q3: What is the operating temperature range of Impregnated Graphite Rings?

A3: Phenolic resin: -50℃ to 200℃; Epoxy resin: -50℃ to 250℃; Furan resin: -100℃ to 300℃; Metal impregnation: Up to 450℃, high-temperature applications are available upon request.

Q4: How to correctly install impregnated graphite rings?

A4: Ensure the sealing surface is clean and flat. Use specialized tools for installation, apply even pressure, allow for thermal expansion gaps at high temperatures, and allow for dry friction break-in first. For details, refer to the technical manual or consult support.

Q5: What are the product's quality standards and certifications?

A5: Complies with JB/T 8872 and ISO 3587:2019 standards, ISO9001:2015 certified, and meets RoHS and REACH environmental requirements. Relevant material and quality certificates can be provided.

Q6: Can you provide customized products and services?

A6: Customized impregnation materials, specifications, and surface treatments are available. Technical support, sample testing, and small-batch trial production are provided. Please consult your sales representative for details.

Q7: What are the packaging and shipping methods for the products?

A7: Inner packaging is moisture-proof/rust-proof. Outer packaging is customized cardboard/wooden boxes. Land, sea, and air freight are available. Special packaging can be discussed. Tracking is provided after shipment.

Q8: What are the warranty period and after-sales service policies?

A8: 12-month warranty (from shipment date), covering quality defects under normal use. Technical guidance and customer service support are provided. Special warranty provisions can be agreed upon in the contract.
