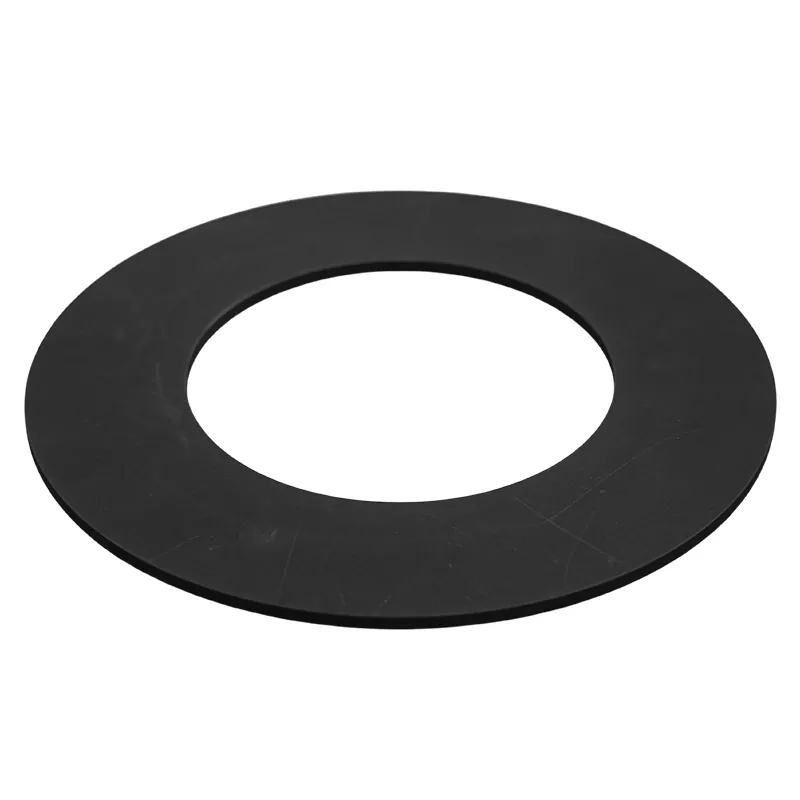

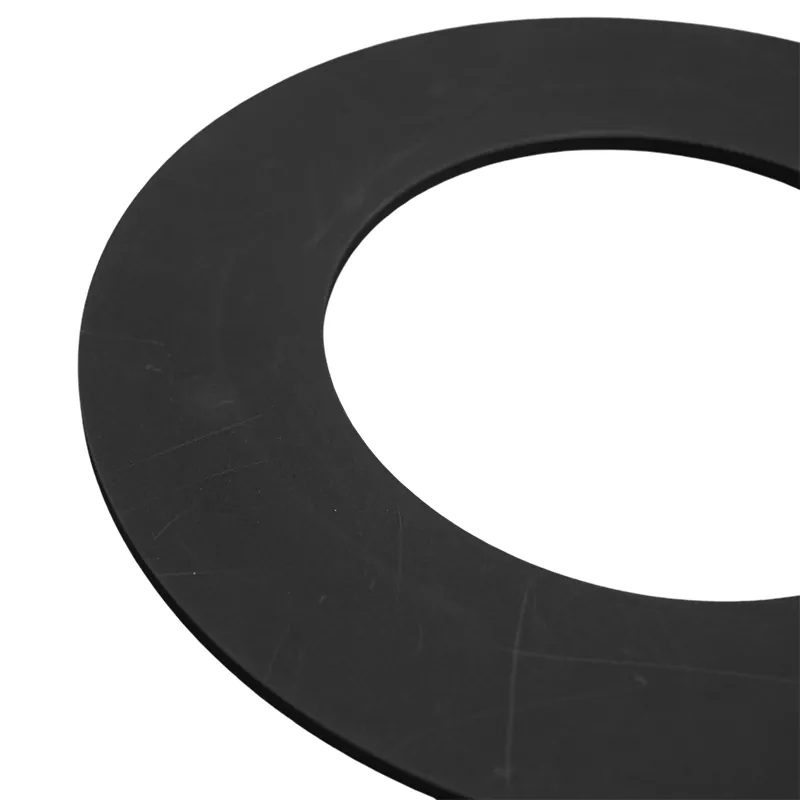

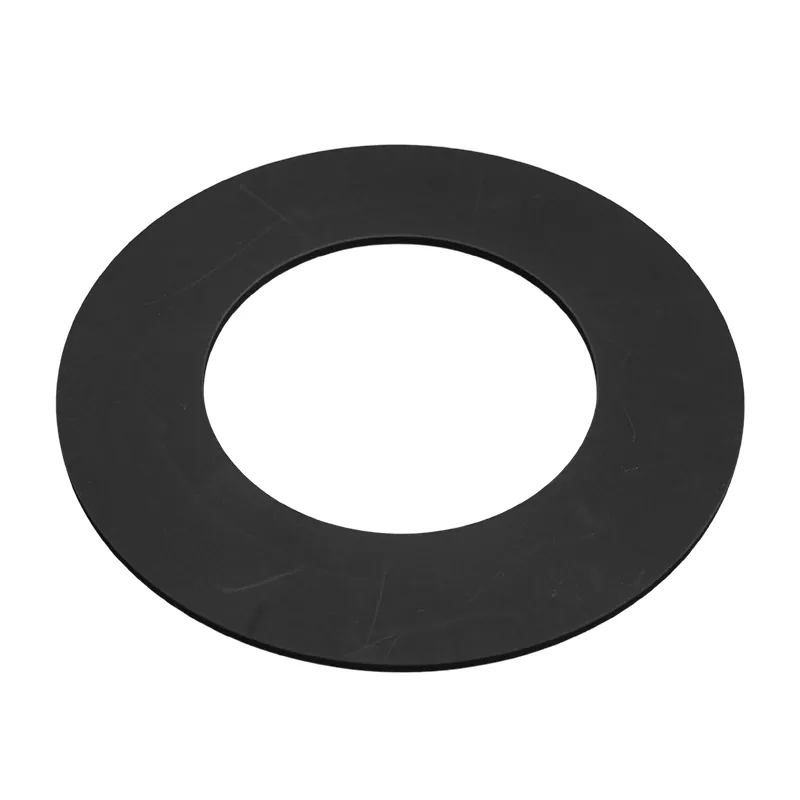

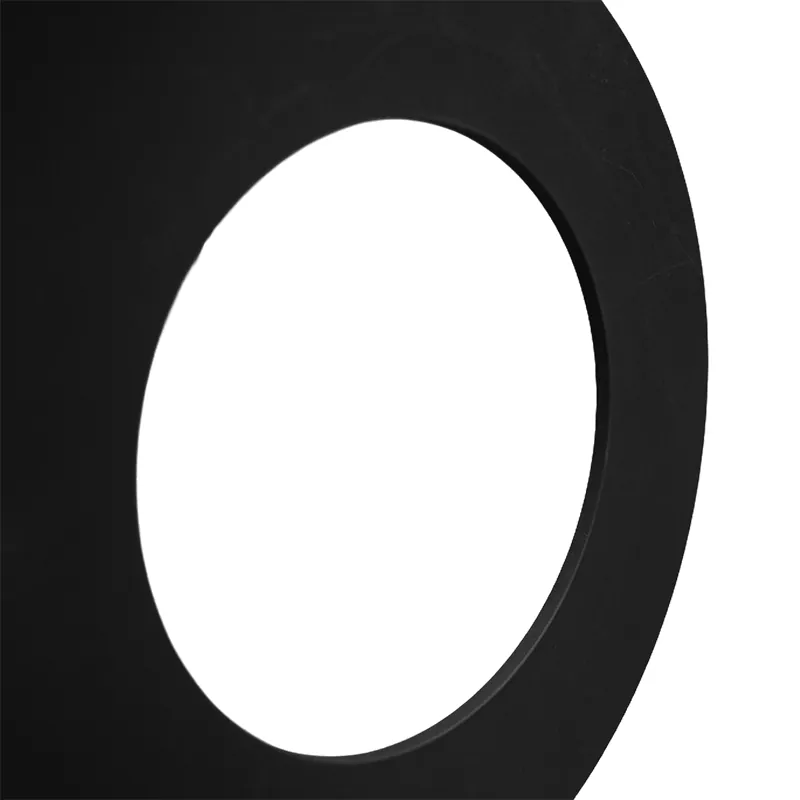

Graphite Rings

SIKAIDA high-purity graphite rings use high-purity graphite as raw material and are processed into precision ring structures using advanced molding processes. They possess excellent electrical contact, high thermal conductivity, strict dimensional tolerances, and a defect-free surface. High purity and stable performance allow for customized production to meet various industrial applications.

High-purity Graphite Rings are customizable to various specifications to meet specific operational needs. The ring structure ensures uniform current distribution and efficient heat conduction. They feature precise geometry and a smooth surface, free from defects such as cracks and bubbles. With a carbon content ≥99.5%, they offer excellent electrical and thermal conductivity, maintaining stability even in extreme temperatures and harsh environments. They are widely used in various industrial fields.

Product Features and Advantages

1. Ring Structure Design: SIKAIDA Graphite Rings utilize a ring structure, achieving uniform current distribution, reducing current concentration, improving the reliability and stability of electrical connections, and simultaneously reducing friction in rotating equipment, extending equipment lifespan.

2. Flexible and Customizable Sizes: Flexible product dimensions are available, with outer diameters of Ø10–Ø500 mm, inner diameters of Ø5–Ø400 mm, and heights of 5–100 mm. Customization is possible to meet various scenarios, from small electronic devices to large industrial equipment.

3. Superior Material Properties: Made from high-purity materials with a carbon content ≥99.5%, they exhibit stable conductivity and corrosion resistance, a low coefficient of thermal expansion, strong dimensional stability, and excellent chemical inertness and high-temperature resistance.

Specifications Table

Core Advantages

1. High-Purity Material: Carbon content ≥99.5%, stable electrical and thermal conductivity, extremely low impurity content, uniform quality, strong chemical inertness, and excellent corrosion resistance.

2. Precision Ring Structure: Precise ring geometry, dimensional tolerance controlled within ±0.1 mm, high coaxiality of inner and outer circles, smooth surface without scratches or cracks.

3. Excellent Mechanical Properties: Compressive strength ≥40 MPa, capable of withstanding high-pressure conditions, good toughness, impact resistance, wear resistance, durability, and long service life.

4. Superior Physical Properties: Low resistivity, high thermal conductivity, wide operating temperature range (-200°C to +450°C), low coefficient of thermal expansion, and dimensional stability under temperature changes.

5. Good Machining Performance: Can be precision machined to customized sizes, surface can be specially treated to improve contact performance, supports composite designs with other materials, and adapts to diverse needs.

Technical Capabilities

1. Materials Technology: Mastering core technologies for high-purity graphite, we implement comprehensive quality control from raw material selection to finished product delivery. Long-term partnerships with high-quality raw material suppliers ensure stable and high-quality raw materials.

2. Molding and Processing Technology: Utilizing advanced molding and precision CNC machining equipment, we can produce products with complex shapes. Special sintering processes ensure stable physical properties and precise dimensions.

3. Quality Control: We have established a comprehensive quality management system covering the entire process from raw material warehousing to product delivery. Advanced testing equipment is used to strictly control key parameters such as resistivity and thermal conductivity.

4. Customization Capabilities: Possessing strong customized design and technical support capabilities, we collaborate closely with clients to provide tailor-made products and solutions to meet specific application needs.

5. R&D and Innovation Capabilities: With a professional R&D team, we continuously optimize materials and processes, keep abreast of industry technology trends, and constantly upgrade products and develop new processes to maintain technological leadership.

Typical Applications

1. Power Industry: Used in high-voltage switches, circuit breaker electrical contact components, motor brushes and slip rings, and conductive connectors for power transmission and transformation equipment, leveraging excellent conductivity and self-lubricating properties.

2. Electronics Industry: Used as heat sinks for power semiconductor devices, anode and gate materials for vacuum tubes, and electron beam tube targets, its stable electrical properties and high-temperature resistance make it suitable for various applications.

3. Chemical Industry: Used as seals and gaskets in chemical equipment, as corrosion-resistant pipe and pump components, and as reactor lining materials, its excellent chemical stability helps resist corrosive conditions.

4. Metallurgical Industry: Used as electrodes in metal smelting, heat-conducting and insulating components for high-temperature furnaces, and crystallizer components for continuous casting machines, its high-temperature resistance and oxidation resistance make it suitable for metallurgical applications.

5. New Energy Field: Suitable for conductive plates in fuel cells, heat-absorbing materials in solar collectors, and electrode materials in energy storage devices, its excellent electrochemical performance supports new energy applications.

6. Aerospace: Used in sealing and heat-insulating components for aircraft engines, thermal control materials for satellites and spacecraft, and components for aircraft braking systems, its lightweight, high-strength, and high-temperature resistance meet aerospace requirements.

Frequently Asked Questions

Q1: What are the main performance advantages of graphite rings?

A1: The main advantages of graphite rings include excellent electrical conductivity (resistivity ≤10 μΩ·m), good thermal conductivity (thermal conductivity 100-200 W/m·K), high mechanical strength (compressive strength ≥40MPa), wide operating temperature range (-200°C to +450°C), and excellent chemical stability.

Q2: What is the size range of graphite rings?

A2: We offer graphite rings with outer diameters from Ø10mm to Ø500mm, inner diameters from Ø5mm to Ø400mm, and heights from 5mm to 100mm. We can customize specifications according to customer needs to meet the requirements of different application scenarios.

Q3: How do graphite rings perform in high-temperature environments?

A3: Our graphite rings can operate normally in a temperature range of -200°C to +450°C. In high-temperature environments, they maintain stable mechanical and electrical properties without significant thermal deformation or performance degradation, making them ideal for high-temperature applications.

Q4: What are the advantages of the ring-shaped structure of graphite rings?

A4: The ring-shaped structure of graphite rings provides a uniform current distribution path, effectively reducing current concentration and improving the reliability of electrical connections. Simultaneously, the ring structure offers advantages such as low friction and less wear in rotating applications, extending equipment lifespan.

Q5: Can you provide customized graphite ring products?

A5: Yes, we offer comprehensive customization services. Customers can customize graphite ring products of different sizes, shapes, and performance specifications according to specific application needs. Our technical team can work closely with customers to provide professional design advice and technical support.
