Automotive Side Panel Inner Assembly Stamping Dies

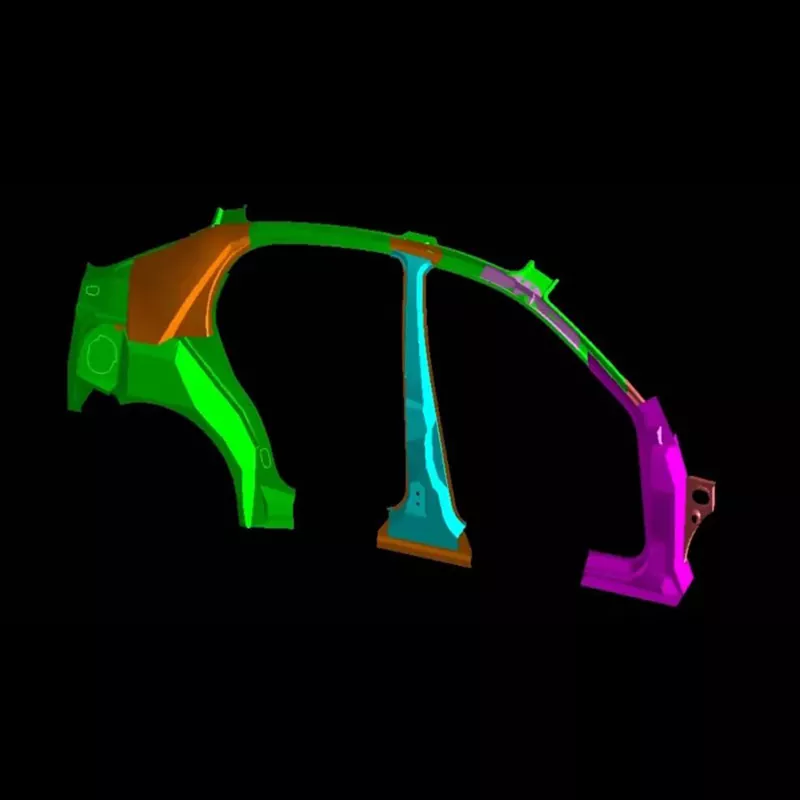

SIKAIDA Automotive Side Panel Inner Assembly Stamping Dies are large, high-precision die systems used for stamping side panel inner panels from sheet metal. They are core dies in body-in-white production and are widely used in passenger car and commercial vehicle manufacturing. This product integrates multiple stamping processes to achieve one-piece molding of the side panel inner panel, ensuring production efficiency and consistency. Our factory in China, with advanced equipment and a professional team, guarantees stable and high-quality die production.

Detailed Product Features

1. Large and Complex Structure

The side panel inner panel is large in size (over 800mm in length and over 600mm in width) and has a complex shape, requiring the forming of multiple features. SIKAIDA Automotive Side Panel Inner Assembly Stamping Dies features high surface precision, multiple free-form surfaces, and a rational structural design, solving the problem of uneven force distribution during stamping of large sheet metal.

2. High Precision and High Quality Requirements

As an exterior component, the side panel inner panel must be free of scratches, wrinkles, and other defects. SIKAIDA strictly controls mold precision, achieving a surface roughness of Ra0.4μm or higher, meeting high-quality production requirements.

3. Multi-Process Integration

The Automotive Side Panel Inner Assembly Stamping Dies adopts an integrated multi-station design, enabling the completion of multiple processes such as deep drawing and trimming in one operation, improving efficiency. Automated conveying and online inspection functions can be added as needed to achieve intelligent production.

4. Precision Guiding and Balancing System

Equipped with a precision guiding, balancing, and pressure system, it ensures uniform force distribution during sheet metal stamping, avoiding product defects and improving the yield rate.

5. Special Structural Design

Utilizing a segmented die and quick-change die structure, it is compatible with new materials such as high-strength steel and aluminum alloys, solving forming challenges and expanding its application range.

Core Product Features

1. High Rigidity: Utilizing high-strength materials ensures stability in high-tonnage stamping and extends service life.

2. Precision Guiding: A high-precision guide post and guide sleeve system ensures stamping positioning and product accuracy.

3. Intelligent Monitoring: Integrated sensors enable real-time monitoring and predictive maintenance.

4. Quick Die Change: Modular design shortens die changeover time and adapts to multi-variety production.

Application Scenarios

Automotive Side Panel Inner Assembly Stamping Dies are primarily used in passenger car and commercial vehicle body manufacturing, serving as core molds for body-in-white, and are recognized by domestic and international customers. As a professional supplier, SICAIDA can provide customized solutions to meet the needs of different vehicle models.

Manufacturing Process

1. Product Analysis and Process Design

Using professional software for formability analysis and process design, it anticipates and resolves potential problems.

2. Mold Design

Utilizing full 3D design software such as UG and CATIA, meticulous details are refined to ensure mold precision and rationality.

3. Material Selection

The Automotive Side Panel Inner Assembly Stamping Dies mold frame is made of high-strength cast iron or welded steel plates. Key components use high-wear-resistant and high-compression-strength tool steel to guarantee mold quality.

4. Precision Machining

Rough machining, fine machining, special machining, and hand polishing ensure mold precision and appearance quality.

5. Assembly and Debugging (T0 Trial Molding)

After assembly, the mold is tested on the machine, and process parameters are adjusted and optimized until the sample is qualified.

Development Trends:

1. Ultra-Large Integrated Molding: Adapting to the trend of integrated side panel inner panels, a single mold set can weigh over 200 tons.

2. Adaptation to New Material Applications: Optimized design and material selection adapt to the molding characteristics of new materials to meet the lightweight and high-strength requirements of automobiles.

3. Intelligent Manufacturing and Digitalization: Built-in sensors enable real-time monitoring, combined with digital twin technology, shortening the development cycle and reducing costs.

4. Additive Manufacturing (3D Printing) Applications

Automotive Side Panel Inner Assembly Stamping Dies utilize 3D printing technology to create complex structures, improving manufacturing efficiency and product quality.

Frequently Asked Questions

Q1: What materials are typically used in Automotive Side Panel Inner Assembly Stamping Dies?

A1: The mold base commonly uses high-strength cast iron (such as HT300, ductile iron) or welded steel plate structures. Key components such as cavities and cores use high-carbon, high-chromium tool steel (such as Cr12MoV, DC53, etc.), offering high wear resistance and high compressive strength.

Q2: How long is the production cycle for automotive side panel inner assembly stamping dies?

A2: Automotive Side Panel Inner Assembly Stamping Dies are the culmination of technology, experience, and craftsmanship. They integrate mechanical design, materials science, plasticity mechanics, and precision manufacturing. Their development cycle is long (typically 8-15 months) and costly (reaching millions to tens of millions of RMB), making them a key benchmark for measuring the comprehensive strength of a mold company. As automobile bodies develop towards lightweight, high-strength, and intelligent designs, the technical requirements for their molds will continue to rise.
