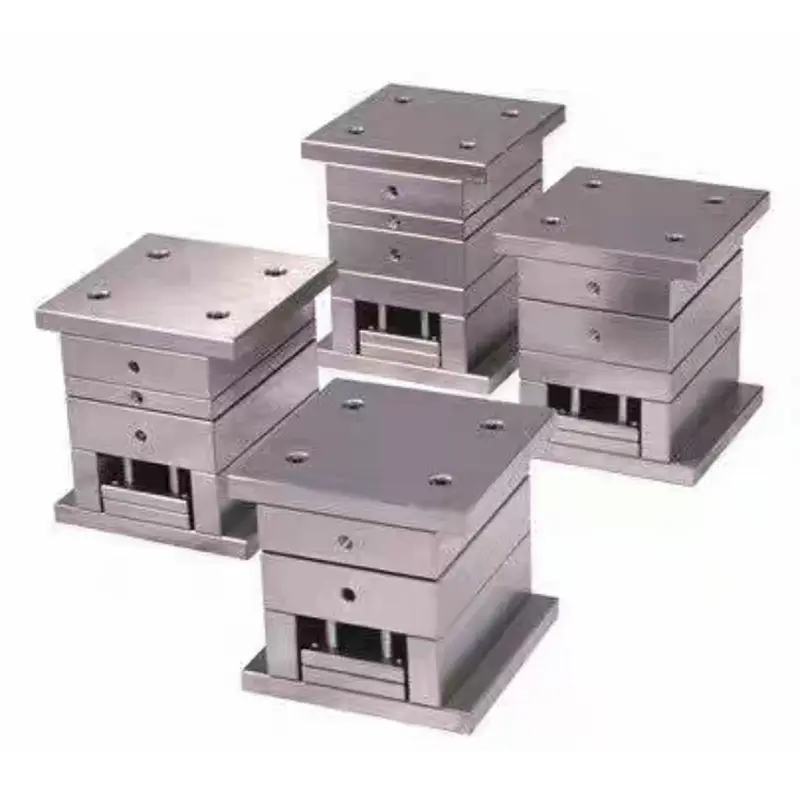

Ultra-High Precision Small Gate Mold Base

The SIKAIDA Ultra-High Precision Small Gate Mold Base is designed specifically for three-platen injection molds, suitable for the production of high-value components in electronics, automotive, medical, and optics industries. It integrates high rigidity, micron-level positioning, stable temperature control, and automated ejection technology to achieve high-quality, consistent molding without weld lines or shrinkage marks. The mold base employs a unique needle valve-type hot runner design, enabling multi-point injection and precise control of melt flow, ensuring defect-free products and making it a key piece of equipment in high-end manufacturing.

Key Technical Features

1. High-Precision Guiding System

The Ultra-High Precision Small Gate Mold Base utilizes high-precision roller guides and linear sliders, coupled with precision-ground guide bushings, ensuring smooth mold opening and closing and high repeatability. The clearance is controlled within 0.01mm, effectively eliminating flash and burr defects caused by guide clearance.

2. Intelligent Temperature Control System

Integrating multi-point temperature sensors and an intelligent control module, the mold temperature accuracy is controlled within ±1℃. Independent zone temperature control allows for precise temperature adjustment for different parts of the product, optimizing melt flow and reducing residual stress.

3. Needle Valve Hot Runner System

Employing a high-precision needle valve hot runner system, it enables multi-point injection and sequential control. The needle valve opening response time is ≤0.1 seconds, effectively preventing melt backflow and stringing, suitable for products with high transparency and stringent appearance requirements.

4. High-Rigidity Structural Design

The Ultra-High Precision Small Gate Mold Base utilizes high-strength alloy steel, undergoes stress-relief annealing, and incorporates optimized rib layout and finite element analysis for enhanced design. This results in minimal deformation under high-pressure injection, uniform clamping force distribution, and extended mold life.

5. Automated Ejection System

Equipped with a precision synchronous ejection mechanism, the ejection speed and stroke are precisely adjustable. Self-lubricating guides ensure smooth, jam-free ejection, uniform demolding force, and reduced product deformation and damage risks.

Product Applications:

1. Electronics & Communications: Mobile phone frames, connectors, heat sinks

2. Automotive Industry: Sensors, dashboards, lighting components

3. Medical Devices: Syringes, blood separators, diagnostic equipment

4. Optical Components: Lenses, filters, display panels

Manufacturing Process:

1. Design Analysis and Simulation

Utilizing professional CAE software such as Moldflow and ANSYS, mold flow, structural strength, and thermodynamic analyses are performed to predict molding risks and optimize runner and cooling system layout.

2. Precision Machining

- Rough Machining: Large CNC milling machines machine the reference surfaces and outlines, leaving allowance for finishing.

- Heat Treatment: Key components undergo tempering and stress-relief annealing to ensure material stability and mechanical properties.

- Finish Machining: High-speed CNC machining achieves high-precision surfaces with a surface roughness of Ra 0.8μm.

- Surface Treatment: Key mating surfaces undergo precision grinding and polishing to ensure smooth and wear-resistant moving parts.

3. Assembly and Debugging

- Component assembly uses torque wrenches to control fastener preload.

- Independent debugging of hydraulic, temperature control, and ejection systems ensures normal function.

- T0 trial molding optimizes process parameters and repairs the mold until the product meets standards.

Development Trends

1. Intelligent Integration

Deeply integrates IoT and AI technologies to achieve equipment interconnection, data acquisition, and process self-optimization. Supports predictive maintenance and anomaly alarms, improving the production efficiency and product stability of Ultra-High Precision Small Gate Mold Base.

2. Micro-foaming Technology Application

Combined with a supercritical fluid injection system, it achieves lightweighting and improved surface quality, solves the shrinkage problem in thick-walled products, and reduces material usage by more than 30%.

3. Digital Twin Application

A virtual mold system is built to optimize process parameters and predict failures in a virtual environment, reducing the number of trial moldings and shortening the development cycle.

4. Additive Manufacturing Integration

Metal 3D printing technology is applied to the manufacturing of complex cooling water channels and hot runners, breaking through traditional processing limitations, improving cooling efficiency, shortening the manufacturing cycle, and reducing energy consumption.

FAQ

Q1: What types of injection molding is the Ultra-High Precision Small Gate Mold Base primarily suitable for?

A1: Small gate mold bases are particularly suitable for molding high-precision plastic parts with strict appearance requirements, such as electronic connectors, optical lenses, and medical device housings. They are especially suitable for products requiring no weld lines, no shrinkage marks, and high surface quality.

Q2: What is the production cycle when using a small gate mold base?

A2: The development cycle for a small gate mold base is typically 4-8 weeks, depending on the complexity and precision requirements of the product. Although the initial investment is higher, its high production efficiency and superior product quality result in significant long-term cost-effectiveness.

Q3: What are the advantages of fine-gate mold bases compared to traditional molds?

A3: Compared to traditional molds, fine-gate mold bases offer advantages such as higher product precision, better surface quality, higher production efficiency, and a higher degree of automation. The needle valve hot runner system effectively avoids product defects, reduces post-processing steps, and improves material utilization, making it particularly suitable for high-volume, high-quality production needs.
