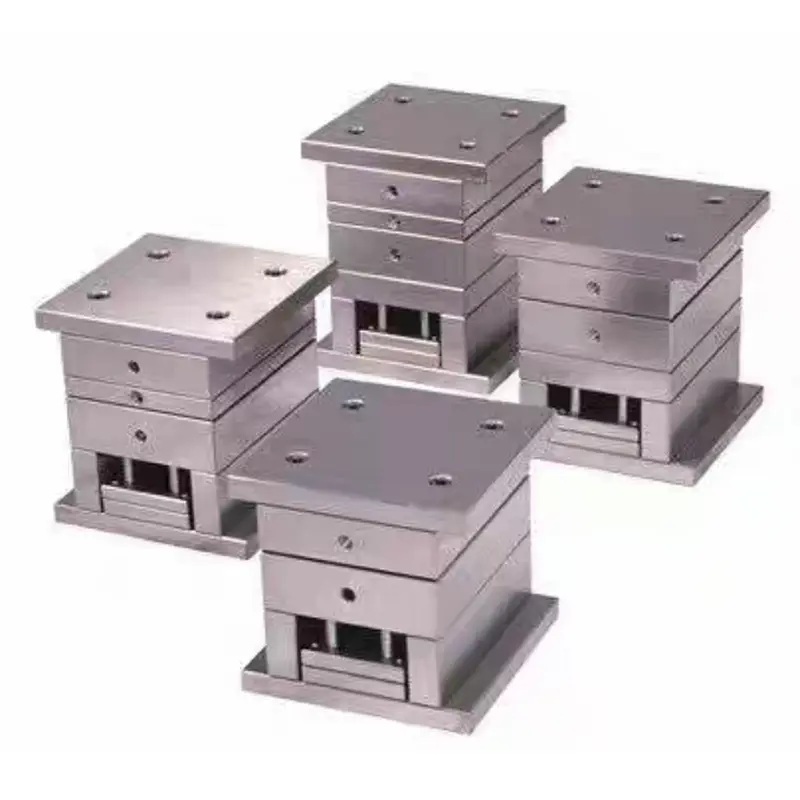

High Precision Large Gate Mold Base

Originating in China, the SIKAIDA High Precision Large Gate Mold Base is the core component of the two-platen mold system, suitable for the mass production of large and complex plastic parts, boasting advantages in high precision, high rigidity, and large dimensions. Its simple two-platen structure and stable mold opening and closing make it suitable for products with high requirements for dimensional accuracy and appearance. As a reliable supplier, SIKAIDA provides high-quality mold bases that meet international standards.

Product Core Parameters and Features

1. High Precision Design

- Precision Guiding: Guide pillar and guide sleeve mating accuracy ±0.02mm, precise alignment of cavity and core;

- Rigidity Optimization: Finite element analysis optimizes the structure, resulting in minimal deformation under high clamping force;

- Standard Interface: Compatible with mainstream injection molding equipment, reducing matching difficulty.

2. Large Size Range

High Precision Large Gate Mold Base sizes range from 300mm×300mm to 1200mm×2000mm, standard thickness 200mm-400mm, supporting customization and splicing expansion.

3. Materials and Processes

- Materials: Mold base uses S45C/S50C steel (tempered HB180-220), key components use SUJ2 bearing steel (quenched HRC48-52), optional anti-corrosion coating;

- Processes: CNC machining (mating surface Ra≤0.8μm), deep hole drilling for water channels (accuracy ±0.1mm), precision grinding of key surfaces.

4. Cooling and Structure

- Cooling System: Multi-loop independent water channels, quick connectors, independent flow control for each loop;

- Two-platen structure: Simple and reliable, smooth mold opening and closing, strong mold clamping rigidity, and low maintenance cost.

Product Applications

High-Precision Large Gate Mold Base is widely used in automotive interior parts (door panels, dashboards, etc.), home appliance housings (washing machine panels, etc.), electronic products (mobile phone frames, etc.), and daily necessities (turnover boxes, etc.).

Manufacturing Process

Design and modeling → Rough machining → Precision machining → Heat treatment → Assembly and debugging, with strict quality control throughout.

Technical Advantages:

1. Precision Guarantee: Accurate guidance, high rigidity, and consistent machining;

2. High Efficiency and Durability: Fast mold opening and closing, excellent cooling, superior materials and processes, and long service life;

3. Convenient Maintenance: Modular design, standardized parts, and low spare parts cost.

Development Trends

Focusing on intelligent integration, lightweight design, rapid mold changeover, and digital manufacturing to enhance product competitiveness.

Quality Assurance

Certified by ISO9001 and IATF16949, equipped with professional testing equipment, enabling full production traceability and precise quality control.

After-Sales Service

Provides professional technical support and training, 12-month product warranty (refund or replacement for quality issues), 24-hour response time, 48-hour on-site service, and long-term spare parts supply.

Frequently Asked Questions

Q1: What is the service life of the High Precision Large Gate Mold Base?

A1: Under normal use and maintenance conditions, the mold base life can reach 500,000-1,000,000 molding cycles. The key lies in correct use and regular maintenance, especially the lubrication and maintenance of guide pillars and bushings.

Q2: How is the mold base precision maintained?

A2: Precision is ensured by using high-quality steel, precision machining, and strict heat treatment processes. During use, the wear of guide pillars and bushings should be checked regularly, and worn parts should be replaced promptly.

Q3: Which types of injection molding machines is it suitable for?

A3: This mold base is suitable for various thermoplastic injection molding machines, including horizontal, vertical, and two-color injection molding machines. The appropriate model can be selected based on tonnage and installation requirements.

Q4: How to choose the appropriate mold base size?

A4: It needs to be selected based on the product size, molding tonnage, and mold structure. The product size should be controlled within 80% of the effective molding area of the mold base to ensure sufficient clamping force and injection pressure.

Q5: What maintenance precautions should be taken for the High Precision Large Gate Mold Base?

A5: Regularly check the lubrication of the guide pillars and guide bushings and keep them clean; avoid overloading; regularly check the parallelism of the mold plate; stop the machine immediately if any abnormalities are found.

The SIKAIDA High Precision Large Gate Mold Base, with its high precision, high rigidity, and large size, has become the preferred solution for large-scale precision injection molding. We are committed to providing customers with the highest quality mold base solutions, ensuring that every product meets the highest quality standards.
